Coloured PVC Sheets

Custom Colored Rigid PVC Sheet for Signage and Fabrication

HSQY custom colored rigid PVC sheet is a solid, non-foamed PVC material designed for signage, advertising displays, printed panels, interior decoration, partitions and industrial fabrication. It combines controlled color, good rigidity, moisture resistance and practical processing performance for commercial and industrial applications.

Standard colors include white, black, red, yellow and blue, while additional opaque, translucent and decorative colors can be developed according to project requirements. Buyers can provide a Pantone reference, RAL reference or physical color sample for custom color-matching evaluation.

The current HSQY rigid PVC sheet range includes thicknesses from 0.21mm to 6.5mm, standard sheet sizes of 915 × 1830mm and 1220 × 2440mm, and a listed maximum width of 1280mm. Customized dimensions, colors, finishes and selected functional grades are available subject to production confirmation.

Custom Colored Rigid PVC Sheet Video

What Is Colored Rigid PVC Sheet?

Colored rigid PVC sheet is a solid polyvinyl chloride sheet manufactured with pigments incorporated into the PVC formulation. Unlike a clear sheet with a printed or painted surface, the color is created as part of the material during production.

The material may also be described as colored PVC-U sheet, hard PVC sheet or solid colored PVC sheet. It maintains its shape and rigidity without the flexibility associated with soft PVC film.

Colored rigid PVC sheet should also be distinguished from PVC foam board. Solid rigid PVC has a compact, higher-density structure, while PVC foam board contains a cellular core and is generally selected for different weight, thickness and fabrication requirements.

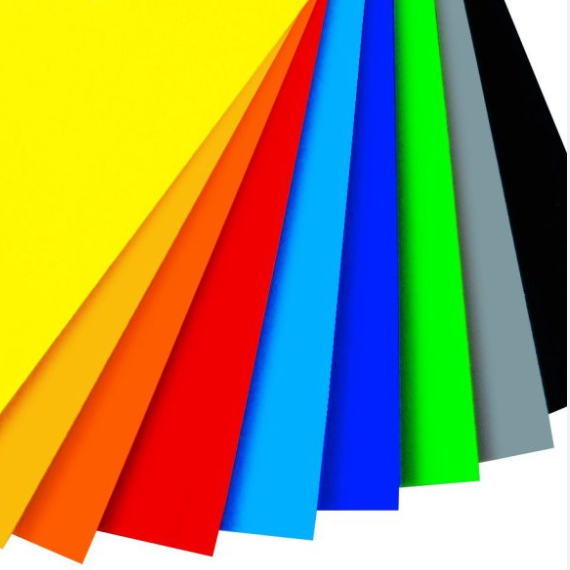

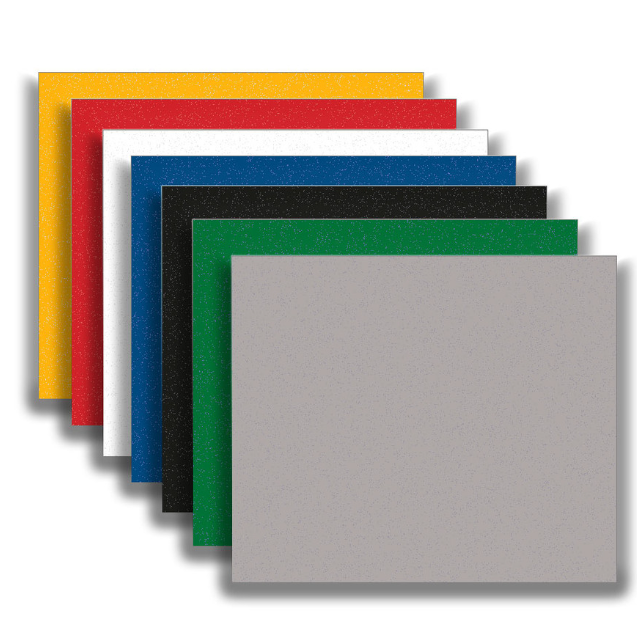

Custom Colored PVC Sheet Product Images

Colored Rigid PVC Sheet Specifications

The following specifications provide a reference for the current HSQY colored rigid PVC sheet range. Exact dimensions, tolerances, colors, mechanical properties and functional additives should be confirmed for the selected production grade.

Custom Color Matching for Rigid PVC Sheet

For branded signage, retail displays, interior design and color-coded industrial components, color consistency can be as important as sheet thickness and mechanical performance. HSQY can evaluate custom color development according to a defined color reference.

Pantone Color Matching

Buyers can provide a Pantone reference together with the required opacity, surface finish and end-use application. A physical production sample should be approved before mass manufacturing when precise color control is required.

RAL Color Matching

RAL references can be used for projects such as architectural interiors, equipment panels, industrial identification and fabricated components. Final appearance can vary with surface gloss, sheet thickness and lighting, so sample approval is recommended.

Physical Sample Matching

A physical reference sample can be supplied when a standard color code does not accurately represent the required appearance. Buyers should define acceptable color tolerance and viewing conditions when color consistency is critical.

Key Advantages of Colored Rigid PVC Sheet

• Custom Color Options: Standard and custom-matched colors support branding, decoration and industrial identification.

• Color Integrated into the Material: Pigments are incorporated during material production rather than relying only on a printed surface.

• Solid Rigid Construction: Compact PVC construction provides useful stiffness and dimensional support.

• Moisture Resistance: Rigid PVC has low water absorption and performs well in many moisture-exposed applications.

• Chemical Resistance: PVC provides resistance to many acids, alkalis and industrial chemicals, depending on concentration and temperature.

• Easy Fabrication: Suitable grades can be cut, drilled, routed, welded and bonded with appropriate processing equipment.

• Printing Capability: Selected surfaces can be evaluated for screen, UV digital and other compatible printing processes.

• Optional Functional Grades: UV-stabilized and antistatic formulations can be discussed when required.

Opaque vs Translucent Colored PVC Sheet

Printing and Fabrication of Colored PVC Sheet

Screen and UV Digital Printing

Selected colored rigid PVC surfaces can be used with compatible screen and UV digital printing systems. Ink adhesion, curing conditions and final color appearance should be tested before commercial production.

When printing on dark PVC colors, the underlying sheet color can affect the printed image. A white ink layer or another printing strategy may be required when bright colors or accurate graphics are needed.

Cutting, Routing and Drilling

Rigid PVC sheet can be cut, routed and drilled with appropriate plastic-processing tools. Tool geometry, cutting speed and heat generation should be controlled according to sheet thickness and required edge quality.

Bonding and Welding

PVC-compatible adhesives and welding techniques can be evaluated for fabricated products. Joint design, surface preparation and the operating environment should be considered when establishing the fabrication process.

Thermoforming

Selected rigid PVC formulations and thicknesses can be thermoformed. Heating conditions, forming depth, mold geometry and cooling should be validated through trial production using the exact material grade.

Applications of Custom Colored Rigid PVC Sheet

Signage and Advertising

Colored rigid PVC is suitable for indoor signage, promotional panels, advertising displays and fabricated sign components. Custom colors allow sign manufacturers and brand owners to coordinate material appearance with corporate identity.

Retail and POP Displays

Rigid PVC sheets can be fabricated into retail display panels, promotional fixtures, point-of-purchase displays and branded components. Color, thickness and finish can be selected according to the display design.

Interior Decoration and Partitions

Custom colored PVC sheets can be evaluated for decorative wall panels, partitions, interior surfaces and other applications where moisture resistance and controlled color are required.

Industrial Fabrication

Rigid PVC is used for selected fabricated machine components, equipment covers, partitions, chemical-processing components and other industrial products. Chemical exposure, temperature and mechanical loads should be evaluated for the specific application.

Color-Coded Industrial Components

Different PVC colors can be used to identify production areas, equipment, panels or functional components. Where color identification is important, buyers should define the required reference color and acceptable tolerance before production.

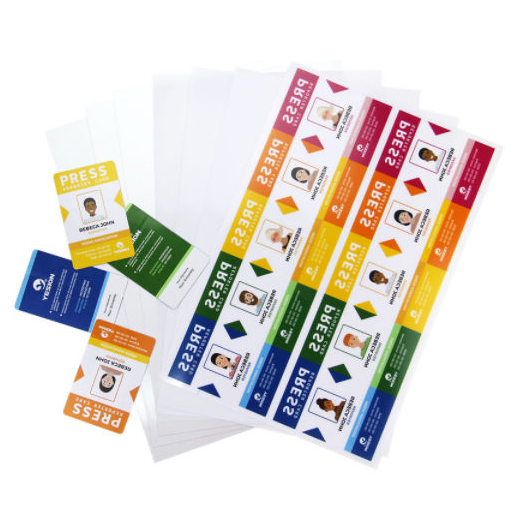

Colored PVC Sheet Application Images

Colored Rigid PVC Sheet vs PVC Foam Board

How to Select Custom Colored Rigid PVC Sheet

Production Process

Extrusion

Extrusion enables continuous production of rigid PVC sheets with controlled thickness, dimensions and color. The PVC formulation, pigments and selected additives are processed under controlled production conditions according to the required sheet specification.

Calendaring

Calendaring can be used for thinner PVC sheet and film products where controlled gauge and surface finish are important. The appropriate production process depends on the required thickness, format and surface specification.

Custom Colored PVC Sheet Supply Options

• Custom Colors: Pantone, RAL and physical color sample matching.

• Custom Thickness: Multiple gauges according to production feasibility.

• Custom Dimensions: Standard and customized sheet sizes.

• Surface Options: Glossy, smooth and other available finishes.

• Functional Grades: UV-stabilized, antistatic and other selected formulations.

• Protective Film: Surface protection can be discussed for fabrication and display projects.

• Color Samples: Sample development can be discussed before commercial production.

• Export Packaging: Sheet and roll packaging options for international shipment.

Information Needed for a Colored PVC Sheet Quotation

To receive an accurate quotation, please provide the required thickness, sheet size, color, color reference, opacity, surface finish, application, order quantity and delivery destination.

For industrial applications, also specify the intended fabrication process, operating temperature, chemical exposure and any UV, antistatic or other functional requirements.

For precise custom-color projects, providing both a color reference and an approved physical sample can help establish the final production standard.

PVC Technical Data and Test Reports

The following technical documents are retained from the existing product page for reference. Some reports apply to other PVC colors, grades or formats. Please request the latest document applicable to the exact colored rigid PVC sheet specification before final material approval.

Packaging Details

Sheet Packaging: Rigid PVC sheets can be protected with kraft paper and export pallets according to sheet dimensions and transportation requirements.

Roll Packaging: For suitable thin-gauge materials supplied in roll format, a 76mm paper tube core and protective wrapping can be used according to the confirmed order specification.

Custom Packaging: Customized identification and packaging arrangements can be discussed for distributors and high-volume customers.

Quality and Certification Documentation

HSQY provides product and quality documentation according to the selected PVC grade and order requirements. The scope and applicability of any certificate or test report should be confirmed against the exact color, thickness, formulation and intended application.

HSQY Plastic Group Global Exhibitions

HSQY Plastic Group participates in international plastics, packaging and manufacturing exhibitions to meet distributors, processors and industrial buyers and discuss customized specifications, material samples, colors and long-term supply requirements.

Frequently Asked Questions About Colored Rigid PVC Sheet

What is colored rigid PVC sheet?

Colored rigid PVC sheet is a solid PVC material containing pigments that create the required color during production. It is used for signage, displays, interior panels, partitions and fabricated industrial products.

Is colored rigid PVC the same as flexible PVC film?

No. Rigid PVC maintains its sheet shape and is designed for structural support and fabrication, while flexible PVC film contains a formulation intended to provide substantially greater flexibility.

Can HSQY manufacture custom PVC colors?

Yes. Custom colors can be evaluated using a Pantone reference, RAL number or approved physical sample. Final feasibility depends on color, thickness, finish and production quantity.

Can you match a Pantone or RAL color exactly?

Pantone and RAL references can be used as targets for color development. Because appearance is affected by material formulation, gloss, thickness and lighting, buyers should approve a physical production sample and define acceptable tolerance before bulk manufacturing.

What thicknesses are available?

The current listed rigid PVC sheet range is 0.21mm to 6.5mm. Actual availability depends on the required color, surface finish, dimensions and order quantity.

What sheet sizes are available?

Standard reference sizes include 915 × 1830mm and 1220 × 2440mm, with a maximum listed width of 1280mm. Customized dimensions can also be discussed.

Is colored rigid PVC the same as PVC foam board?

No. Colored rigid PVC sheet has a solid compact structure, while PVC foam board contains an expanded cellular core. Their density, weight, available gauges and typical applications are different.

Can colored PVC sheet be printed?

Selected grades can be evaluated for screen printing, UV digital printing and other compatible processes. Ink adhesion and curing performance should be tested using the exact PVC surface and ink system.

Can colored rigid PVC sheet be used outdoors?

Outdoor projects should specify an appropriately UV-stabilized grade. Performance depends on formulation, pigment, climate, sunlight exposure, temperature and expected service conditions.

Is colored PVC sheet chemical resistant?

Rigid PVC offers useful resistance to many acids, alkalis and other chemicals. Compatibility depends on chemical concentration, temperature and exposure time and should be confirmed for the actual application.

Can rigid PVC sheet be thermoformed?

Selected rigid PVC formulations can be thermoformed. Heating conditions, mold geometry, forming depth, thickness and cooling should be validated using the actual production material.

Can I order UV-stabilized or antistatic colored PVC?

Special UV-stabilized, antistatic and other functional formulations can be discussed. Availability depends on color, thickness, required performance and production quantity.

Is standard colored rigid PVC suitable for food packaging?

Standard colored rigid PVC should not automatically be treated as food-contact material. If food-contact use is required, the exact formulation, pigments, additives and applicable documentation must be confirmed for the intended use and destination market.

What is the minimum order quantity for a custom color?

Minimum production quantity can vary according to color, thickness, surface finish and formulation. Please provide the required specification and quantity so the appropriate production requirement can be confirmed.

Can I get a color sample before ordering?

Sample availability can be discussed according to the required color, thickness and finish. A color approval sample is recommended before bulk production for custom-color projects.

What information should I provide for a quotation?

Please provide the required thickness, dimensions, color or color reference, opacity, surface finish, application, order quantity, special functional requirements, packaging requirements and delivery destination.

About HSQY Plastic Group

HSQY Plastic Group manufactures and supplies rigid PVC sheets and other plastic materials for distributors, printing companies, signage manufacturers, display fabricators and industrial processors.

For colored rigid PVC projects, HSQY can support standard colors, custom color development, sheet-size customization, material samples, production evaluation and export supply.

Send your color reference, thickness, dimensions, surface requirements, application and estimated order quantity to discuss a suitable colored rigid PVC sheet specification and quotation.

ChangZhou HuiSu QinYe Plastic Group established more than 16 years, with 8 plants to offer all kinds of Plastic products, including PVC RIGID CLEAR SHEET,PVC FLEXIBLE FILM, PVC GREY BOARD, PVC FOAM BOARD, PET SHEET, ACRYLIC SHEET. Widely used for Package, Sign,D ecoration and other areas.



Our concept of considering both quality and service equally importand and performance gains trust from customers, that is why we have established good cooperation with our clients from Spain, Italy, Austria, Portugar, Germany, Greece, Poland, England, American, South American, India, Thailand, Malaysia and so on.



By choosing HSQY, you'll get the strength and stability. We manuacture the industry's broadest range of products and continuously develop new technologies, formulations and solutions. Our reputation for quality, customer service and technical support is unsurpassed in the industry. We continuously strive to advance sustainability practices in the markets we serve.
