Clear APET Rolls Sheet For Thermoforming
HSQY
Clear APET Rolls Sheet For Thermoforming
0.12-3mm
Transparent or Colored
customized
2000 KG.
| Color: | |
|---|---|
| Size: | |
| Material: | |
| Availability: | |
Product Description
HSQY Black CPET Sheet is a heat-resistant crystalline polyethylene terephthalate (CPET) sheet developed for manufacturing ovenable food trays, microwaveable meal containers, frozen ready-meal packaging and airline catering trays. Its black opaque appearance, mechanical strength and thermal stability make it suitable for industrial food packaging thermoforming.
HSQY Plastic Group supplies black CPET sheets and rolls with listed thicknesses from 0.1 mm to 3 mm, roll widths from 80 mm to 1300 mm, and customized sheet sizes. Surface finishes and other specifications can be discussed according to the customer's thermoforming equipment and finished packaging requirements.
CPET material is designed to develop controlled crystallinity during thermoforming. With suitable processing, finished CPET trays can offer enhanced dimensional stability and resistance to elevated temperatures compared with conventional amorphous PET (APET) packaging.
This product lists a reference application range of -40°C to 177°C (350°F). Actual freezer and oven performance depends on the selected material grade, crystallinity, tray geometry, processing conditions and finished-product testing.
Request a Black CPET Sheet Quote
Black CPET sheet is an opaque, PET-based thermoforming material intended for manufacturing heat-resistant rigid packaging. CPET refers to crystalline or crystallizable polyethylene terephthalate, a polyester material that develops additional crystallinity under appropriate processing conditions.
The black appearance is commonly selected for ready-meal trays, frozen food containers and catering applications where an opaque presentation is preferred. The material can be formed into different tray dimensions, depths and compartment layouts according to the mold design and thermoforming process.
Unlike standard APET sheet, black CPET is typically selected for applications requiring elevated-temperature performance. The finished container must undergo appropriate testing before being approved for microwave or conventional-oven use.
| Property | Details |
|---|---|
| Product Name | Black CPET Thermoforming Sheet |
| Material | Crystalline Polyethylene Terephthalate (CPET) |
| Sheet Size | 700 × 1000 mm, 915 × 1830 mm, 1000 × 2000 mm, 1220 × 2440 mm, Customized |
| Roll Width | 80–1300 mm, Customized |
| Thickness | 0.1–3 mm (Listed Range; Confirm Availability) |
| Reference Density | 1.35 g/cm³ |
| Surface Finish | Glossy, Matte, Frosted |
| Primary Color | Black |
| Other Color Options | White and Customized Colors; Transparent or Other Appearance Options Subject to Material Grade |
| Listed Production Processes | Extruded, Calendered; Confirm Actual Supply Process |
| Listed Temperature Range | -40°C to 177°C (350°F); Subject to Grade and Finished-Tray Validation |
| Applications | Microwaveable Lunch Boxes, Airline Meal Trays, Cups, Clamshells, Blisters, Food Trays, and Selected Medical or Automotive Packaging Applications Subject to Suitability Assessment |
| Listed Certifications | SGS, ISO 9001:2008 (Current Documents and Scope to Be Confirmed) |
| Listed MOQ | 1000 kg in Product Description; Confirm Order-Specific MOQ |
| Payment Terms | T/T, L/C, Western Union, PayPal; Subject to Order Agreement |
| Delivery Terms | EXW, FOB, CNF, DDU; Subject to Confirmation |
| Reference Lead Time | 10–14 Days for 1–20,000 kg; Negotiable Above 20,000 kg |
Note: Specifications are based on the listed product information. Please confirm current thickness availability, minimum order quantity, technical documents, payment terms, delivery terms and production lead time before purchasing.
1. Heat Resistance: Properly crystallized CPET trays can provide improved stability when exposed to elevated temperatures. Actual temperature limits should be determined by testing the finished product in the intended application.
2. Freezer-to-Oven Convenience: Suitable CPET packaging can support frozen or chilled food storage followed by reheating in microwave or conventional ovens under validated conditions.
3. Mechanical Strength: CPET can provide useful rigidity and structural stability for thermoformed food containers. Finished-tray strength depends on wall thickness, geometry and processing conditions.
4. Chemical Resistance: CPET offers resistance to many oils, fats and other substances commonly encountered in food packaging. Compatibility should be verified for the intended product and use conditions.
5. Opaque Black Appearance: Black CPET provides a distinctive presentation for prepared-food trays, airline meal containers and other heat-and-serve packaging formats.
6. Customizable Dimensions: Sheet sizes, roll widths and thicknesses can be discussed according to thermoforming machine width, mold layout and order requirements.
7. Surface Finish Options: Glossy, matte and frosted finishes are listed for this product range. Availability should be confirmed for the selected black CPET grade.
Ready-Meal Trays: Black CPET sheet can be formed into containers for prepared meals sold through supermarkets, foodservice channels and convenience-food producers.
Microwaveable Meal Containers: Qualified CPET trays can be used for microwave reheating when the packaging design, food product and heating cycle are appropriately validated.
Airline Catering Trays: CPET is suitable for selected in-flight catering and institutional meal-service packaging that requires stable trays during reheating and serving.

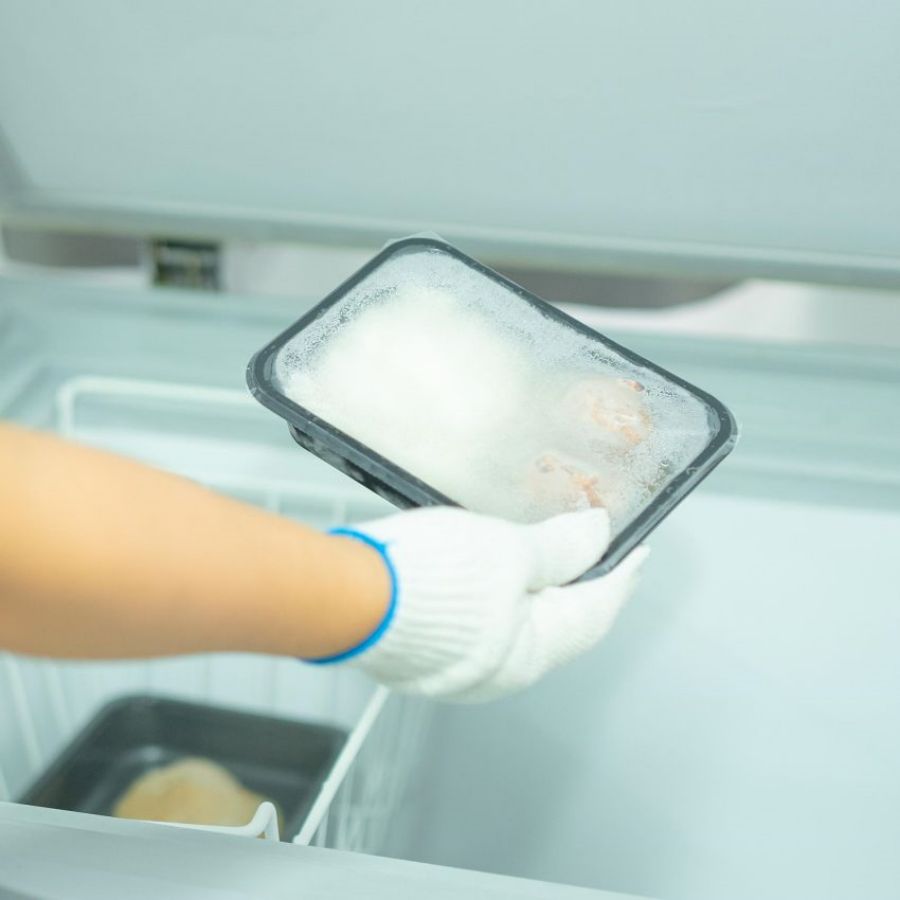

Frozen Food Packaging: CPET trays can support frozen-food storage and subsequent reheating, subject to product design and temperature testing.
Multi-Compartment Food Trays: Thermoforming allows the production of food trays with multiple compartments to separate different meal components.
Custom Rigid Packaging: Additional cup, clamshell, blister or industrial packaging applications can be evaluated where the material's physical and processing characteristics meet the intended requirements. Medical or sterile-packaging applications require separate material qualification.

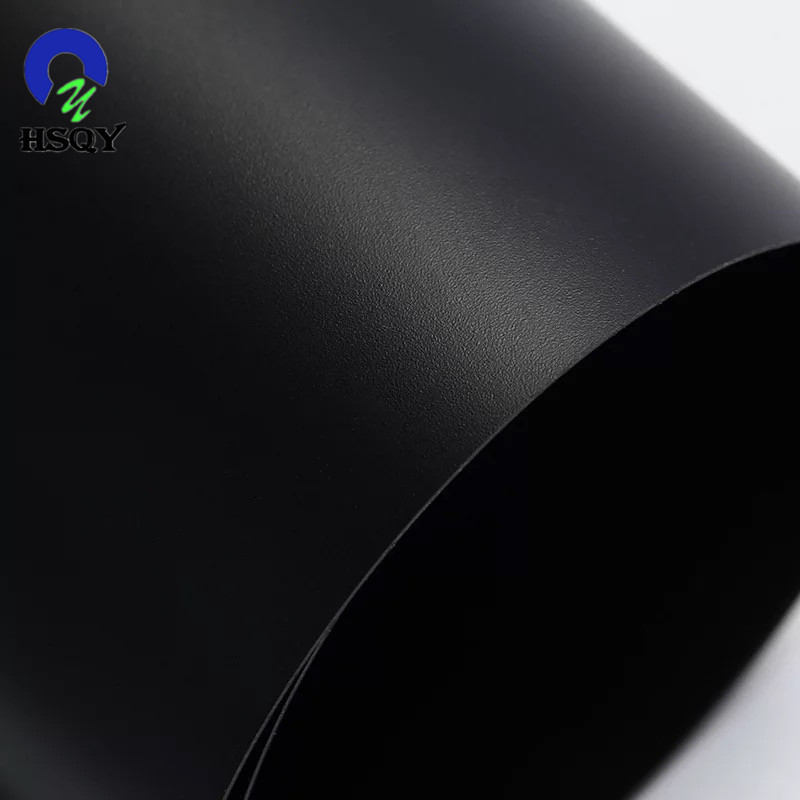

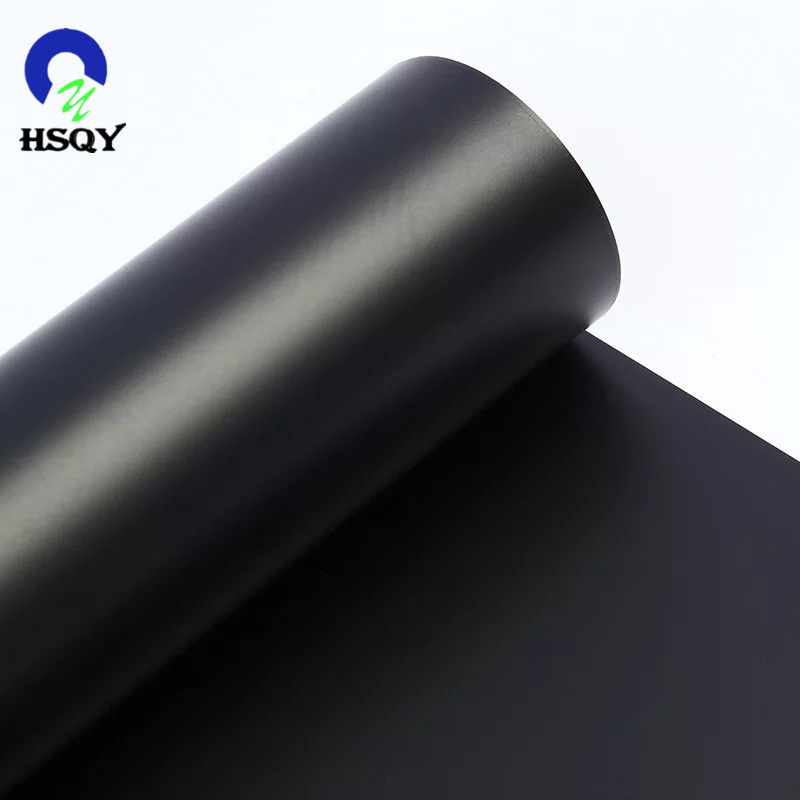

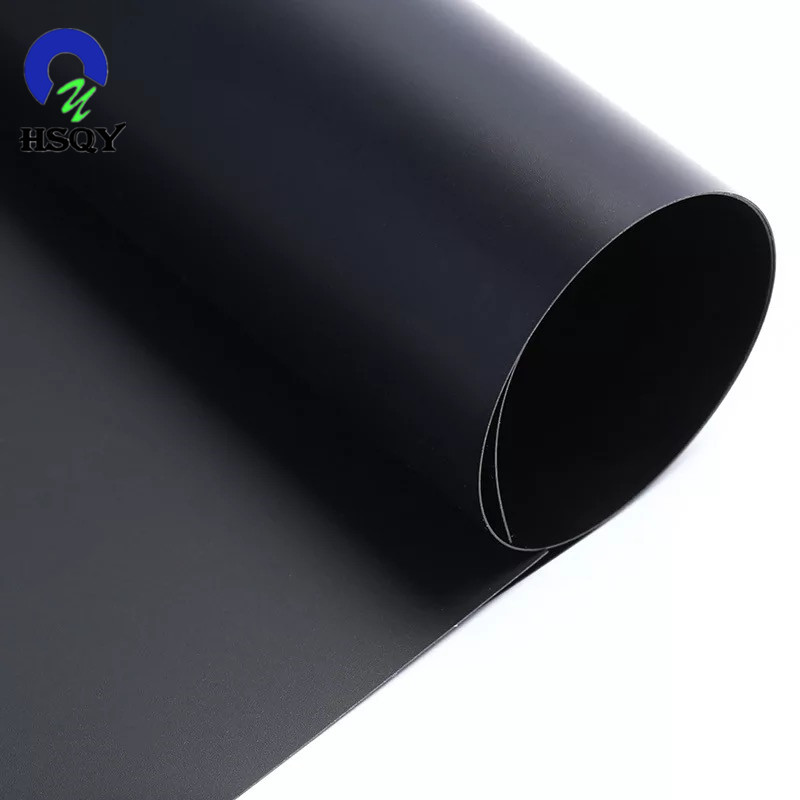

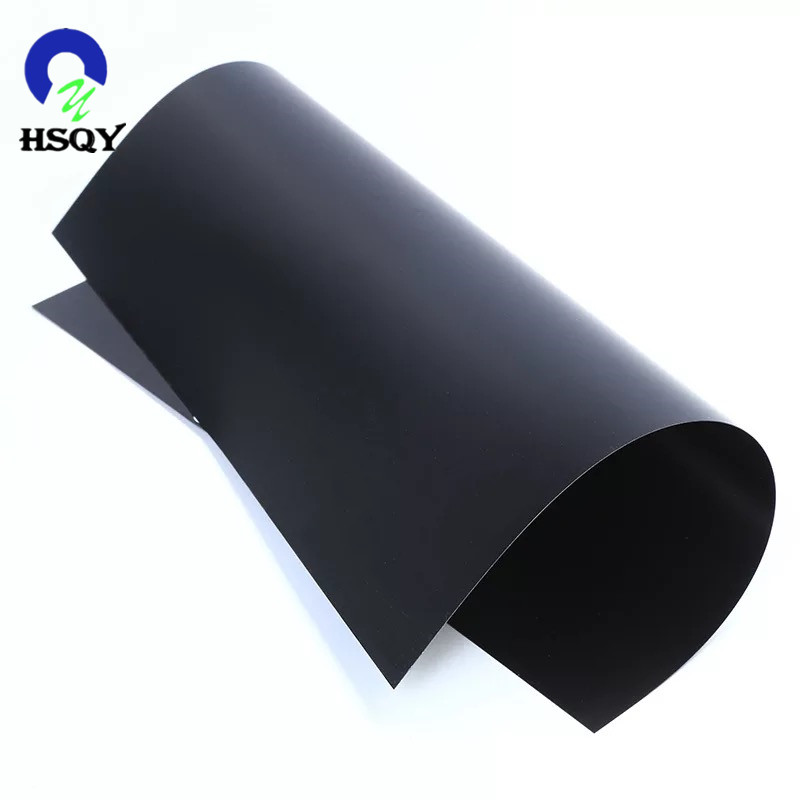

Black CPET Sheet Material

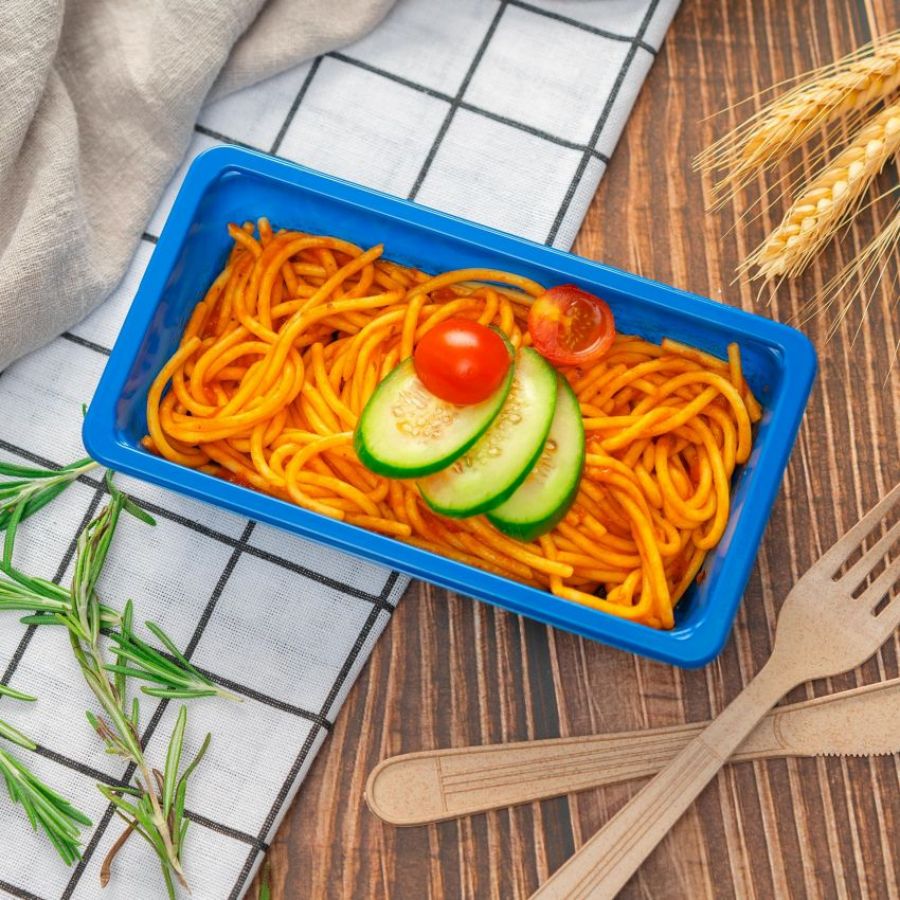

CPET Food Packaging Applications

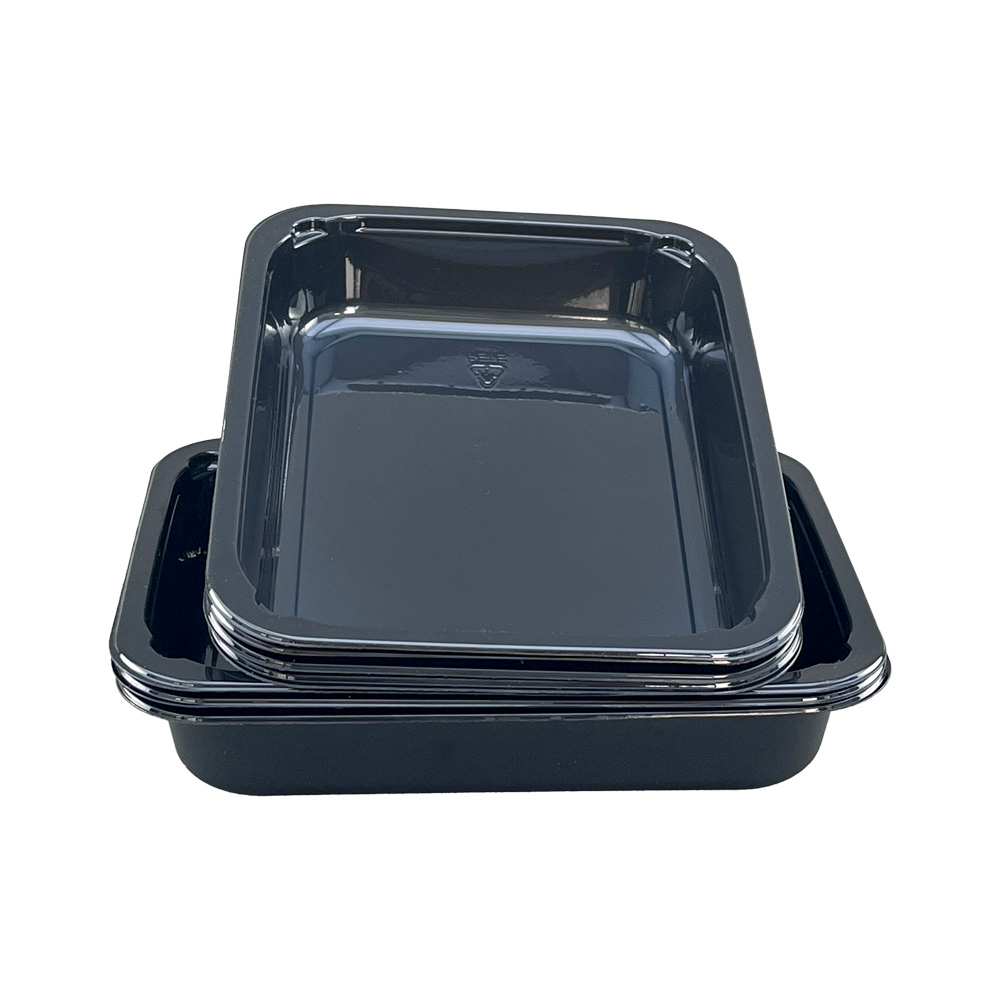

Heat-Resistant Meal Tray Applications
CPET and APET are polyester-based sheet materials, but their structures and typical packaging uses differ. Choosing the right material depends on the final container's appearance, forming requirements and temperature conditions.
| Property | Black CPET Sheet | APET Sheet |
|---|---|---|
| Structure | Crystalline or crystallizable PET | Amorphous PET |
| Appearance | Opaque black | Typically transparent |
| Heat Resistance | Suitable processed grades for ovenable applications | Generally not suitable for conventional ovens |
| Typical Applications | Ovenable meal trays and catering containers | Clear food trays, clamshells and display packaging |
| Processing Considerations | Controlled heating, forming and crystallization | Conventional APET thermoforming |
Black CPET sheets are converted into finished trays using appropriate thermoforming equipment, molds and processing conditions. Controlled crystallization is important for obtaining the required dimensional stability and thermal properties.
Select a sheet thickness according to tray size, drawing depth, wall-thickness distribution and expected food weight. Roll width should match the thermoforming machine and mold layout.
The forming temperature and heating cycle must be established for the specific CPET grade and sheet thickness. Incorrect heating may cause uneven forming or poor material distribution.
Mold design, temperature control and cycle time affect crystallization and dimensional stability. Trial production is recommended to confirm final performance.
Finished CPET trays should be assessed for deformation, leakage, mechanical strength, food-contact requirements and heating performance under the intended use conditions.
Thickness: Specify the required sheet gauge and tolerance based on the finished tray dimensions and thermoforming process.
Dimensions: Provide the required sheet length and width or roll width, core diameter, roll weight and winding requirements.
Appearance: Confirm black color requirements and any surface finish preferences for the intended packaging design.
Application: State whether the sheet will be used for ready meals, frozen foods, airline catering, bakery containers or another thermoformed product.
Heating Conditions: Include the intended oven or microwave temperature, heating duration and food-loading conditions for the finished tray.
Regulatory Requirements: Indicate the destination country and any food-contact documentation required for the final application.
Order Information: Provide the estimated quantity, required delivery date, destination port and preferred commercial terms.
Discuss Your Black CPET Sheet Requirements
HSQY offers protective packing arrangements for black CPET sheets and rolls according to shipment dimensions, order volume and customer requirements. Proper packaging helps protect the material during handling, storage and international transportation.
CPET Sheet Pallet Packing
Export Shipment Preparation
Protective Sheet and Roll Packing
Sample Packaging: A4-sized sheet samples can be packed in PP bags or boxes.
Sheet Packing: Reference packing is 30 kg per bag or as required, with PE film or kraft paper protection.
Roll Packing: Rolls can be protected with PE film or kraft paper according to shipment requirements.
Pallet Packing: The listed reference range is 500–2000 kg per plywood pallet, subject to product size and shipment requirements.

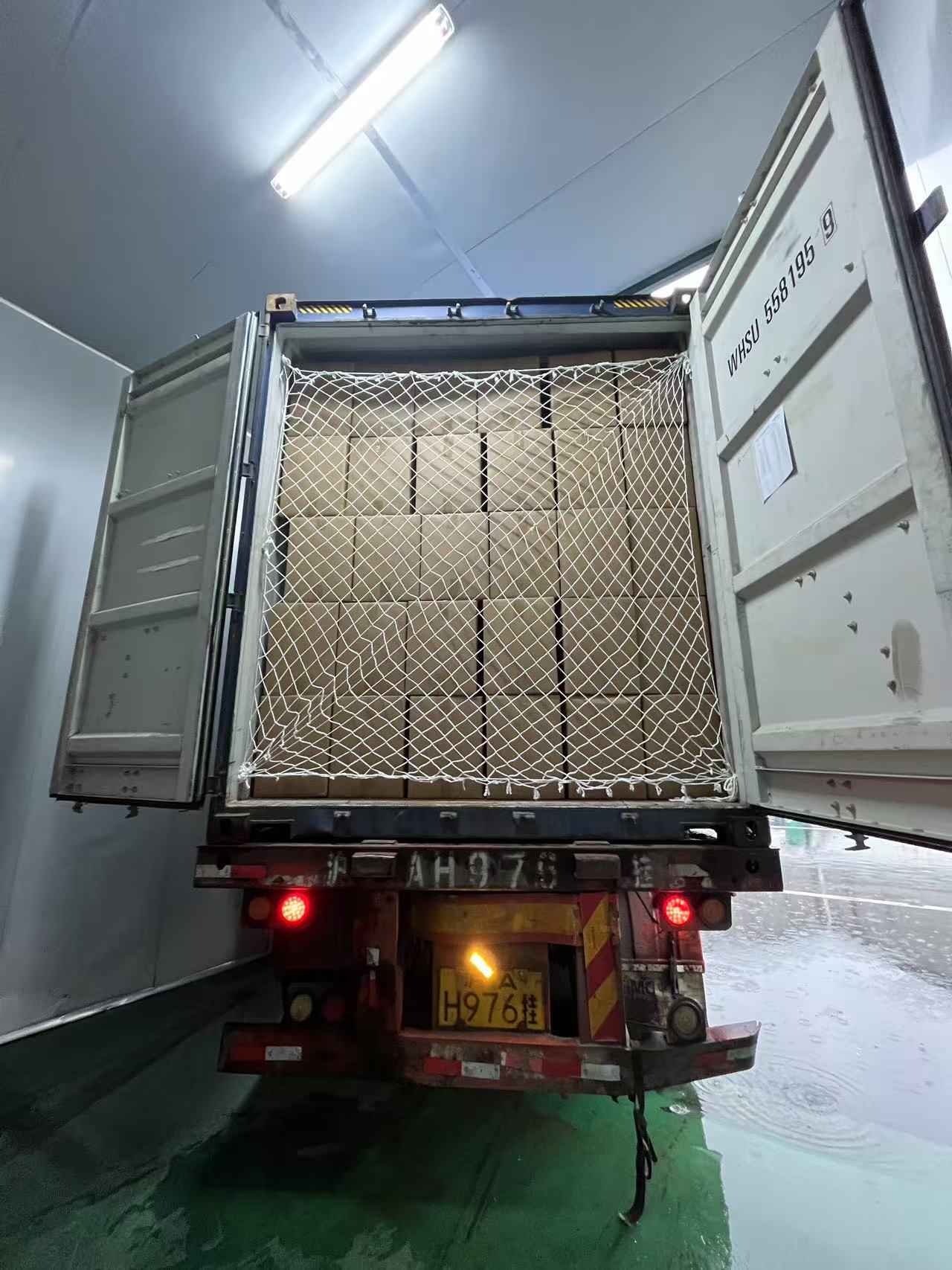

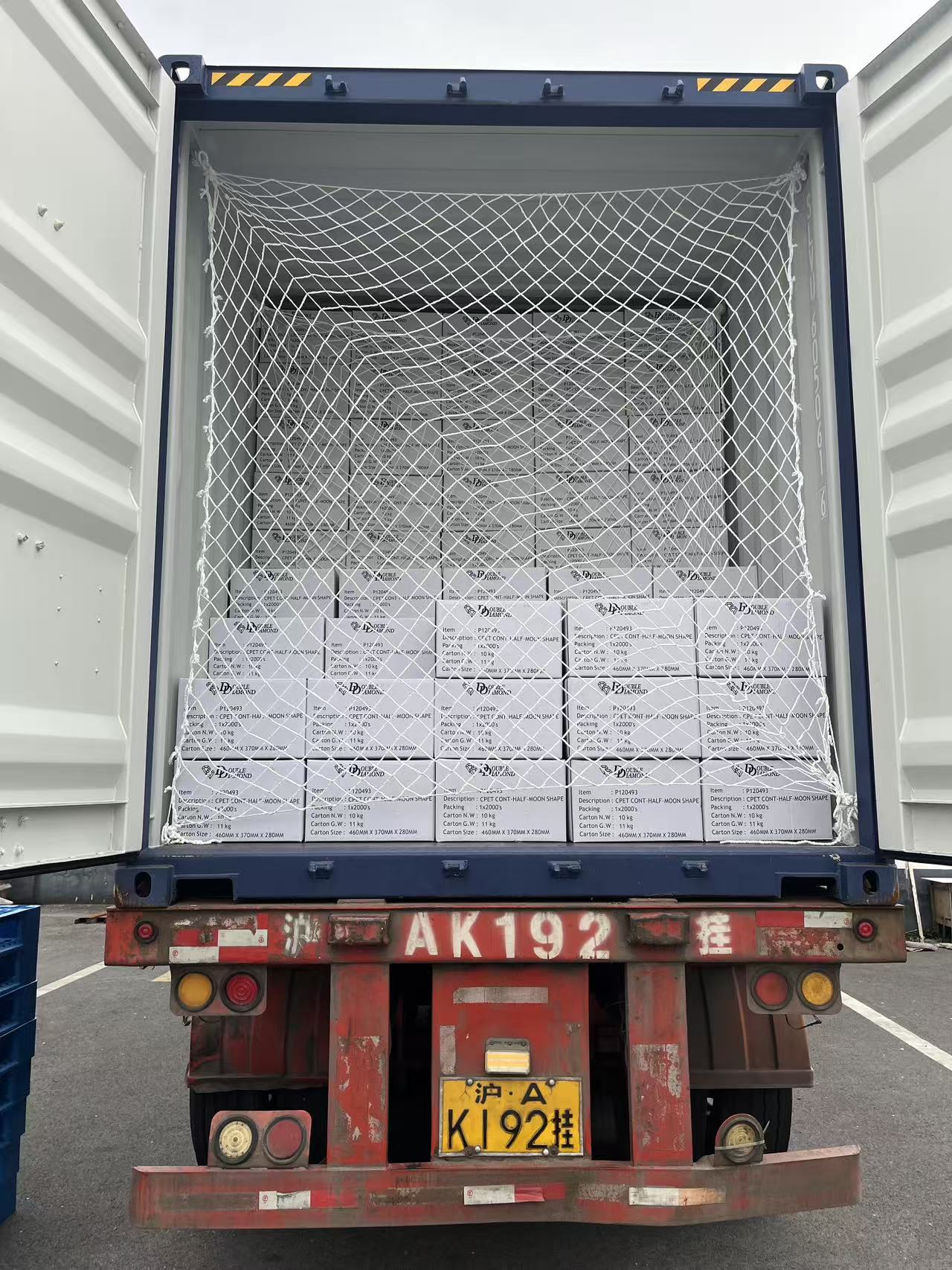

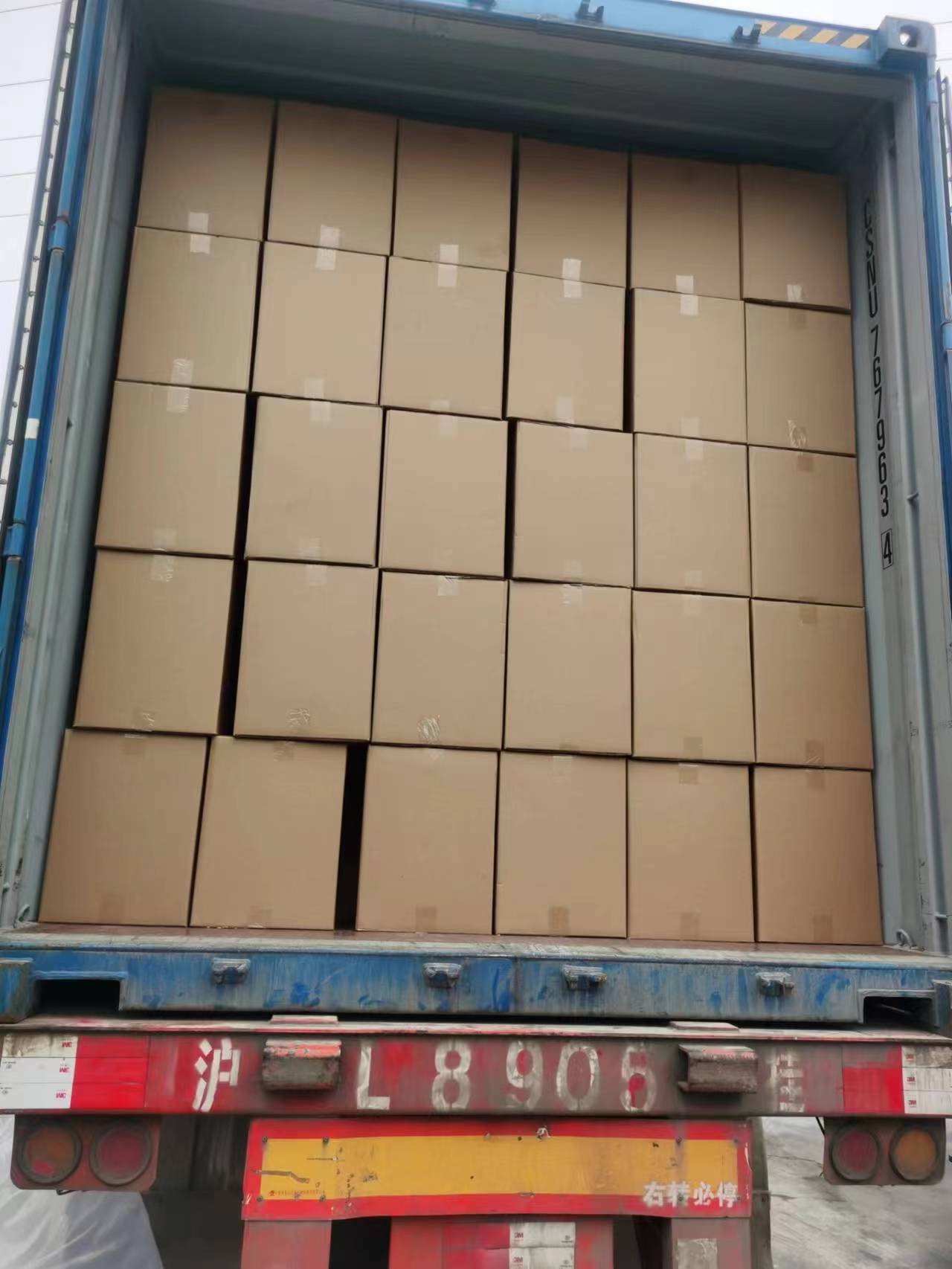

Container Loading: The listed reference is approximately 20 tons per container. Actual loading depends on packing configuration and transport weight limits.
Delivery Terms: EXW, FOB, CNF and DDU terms are listed. Final delivery terms are confirmed when ordering.
Lead Time: The listed reference is 10–14 days for quantities of 1–20,000 kg, with larger orders subject to negotiation and production scheduling.

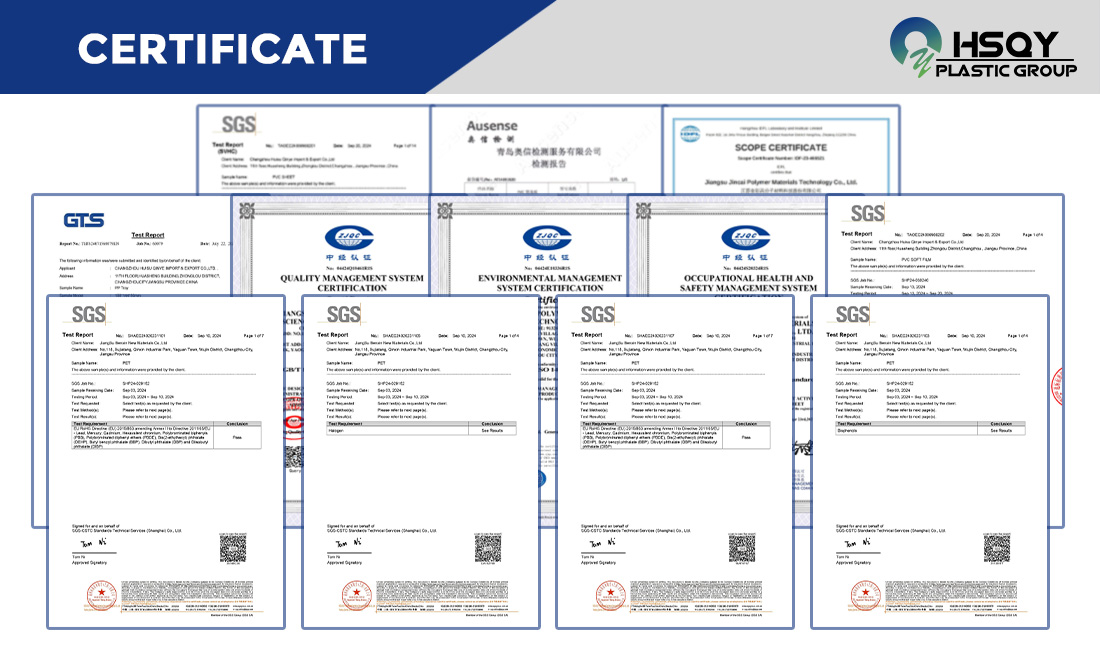

HSQY Plastic Group provides product information and can discuss available inspection reports and quality documentation for specific CPET sheet grades. The product information lists SGS and ISO 9001:2008 documentation; buyers should request current documents and confirm their applicable scope.
For food-contact packaging, suitability must be assessed against the relevant requirements of the destination market, material formulation, intended food type and processing conditions. A general quality management certificate alone does not establish food-contact compliance.
HSQY Plastic Group participates in international plastics and packaging exhibitions to connect with food packaging manufacturers, thermoforming companies, distributors and industrial buyers. Customers can discuss black CPET sheet specifications, sample requirements and long-term supply cooperation with our team.
Shanghai Exhibition - March 2017
Mexico Exhibition - August 2024
Paris Exhibition - November 2024
Multiple Supply Specifications: HSQY offers a range of CPET thicknesses, sheet dimensions, roll widths and finishing options for industrial thermoforming.
Application-Oriented Communication: Buyers can discuss mold dimensions, forming conditions, food packaging requirements and final heating conditions when selecting CPET materials.
Sample and Order Support: HSQY can discuss sample requirements, bulk orders, commercial terms and international delivery arrangements.
Packaging Material Portfolio: HSQY supplies CPET and other plastic sheet and film products for packaging converters, distributors and manufacturers.
Black CPET sheet is an opaque crystalline or crystallizable PET-based sheet used for manufacturing heat-resistant thermoformed packaging. Common applications include ovenable meal trays, microwaveable food containers and airline catering trays.
Yes. Suitable black CPET grades can be thermoformed into ovenable trays. The final tray's temperature resistance depends on its design, crystallinity, wall thickness and validated heating conditions.
The listed product information provides a reference range from -40°C to 177°C (350°F). This does not automatically establish the performance of every finished tray. Temperature capability and heating duration should be confirmed by testing the actual packaging.
The listed thickness range is 0.1–3 mm. Please confirm the available production range, gauge tolerance and suitability for your intended thermoforming application.
Yes. HSQY lists standard sheet dimensions up to 1220 × 2440 mm and roll widths from 80 mm to 1300 mm. Custom sheet sizes and widths can be discussed according to production requirements.
Black CPET is generally selected for opaque, heat-resistant thermoformed packaging. APET is typically selected for transparent, non-ovenable trays and display packaging. Their processing conditions and thermal characteristics differ.
Suitable CPET trays may support freezer-to-oven applications when designed and validated for the complete storage and heating cycle. The food product, tray geometry, temperature and heating duration must be considered together.
Food-contact suitability must be confirmed for the specific CPET formulation and intended use. Buyers should request appropriate test reports or declarations for their destination market and application.
Black CPET is a PET-based material. Practical recyclability depends on local collection and sorting systems, packaging construction and recycling facility capabilities. Black pigmentation may affect optical sorting in some recycling systems.
The detailed product specification lists an MOQ of 1000 kg. Please contact HSQY to confirm the current minimum order quantity for your thickness, width and delivery requirements.
Yes. A4-sized samples are listed as available. Contact HSQY to confirm sample availability, sample charges if applicable and freight arrangements. Express shipment options may include DHL, FedEx, UPS and TNT.
Please provide your required sheet thickness, width, sheet or roll dimensions, surface finish, thermoforming application, quantity, destination and delivery requirements. Include heating conditions and regulatory requirements where relevant.
Changzhou Huisu Qinye Plastic Group Co., Ltd., based in Jiangsu, China, supplies plastic sheets, films and packaging materials for manufacturers, converters and distributors. Its product portfolio includes CPET sheets, PP containers, PVC films, polycarbonate products and other industrial plastic materials.
HSQY supports international buyers with product specification discussions, customized dimensions, sample arrangements, packing options and export-related communication.
Looking for a black CPET sheet supplier for ovenable food trays, frozen ready-meal packaging or industrial thermoforming? HSQY Plastic can discuss black CPET sheet specifications and supply options for your production requirements.
Send us your required thickness, width, finish, application, estimated order volume and delivery destination. Our team can help you evaluate available grades, sample arrangements and quotation details.
